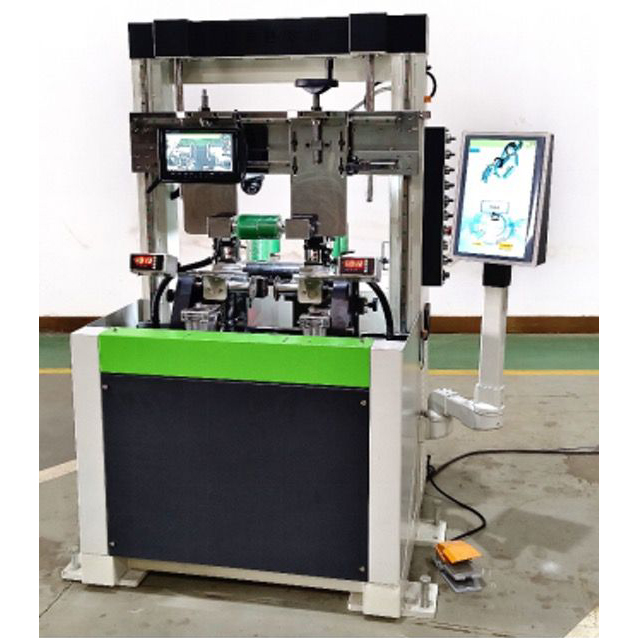

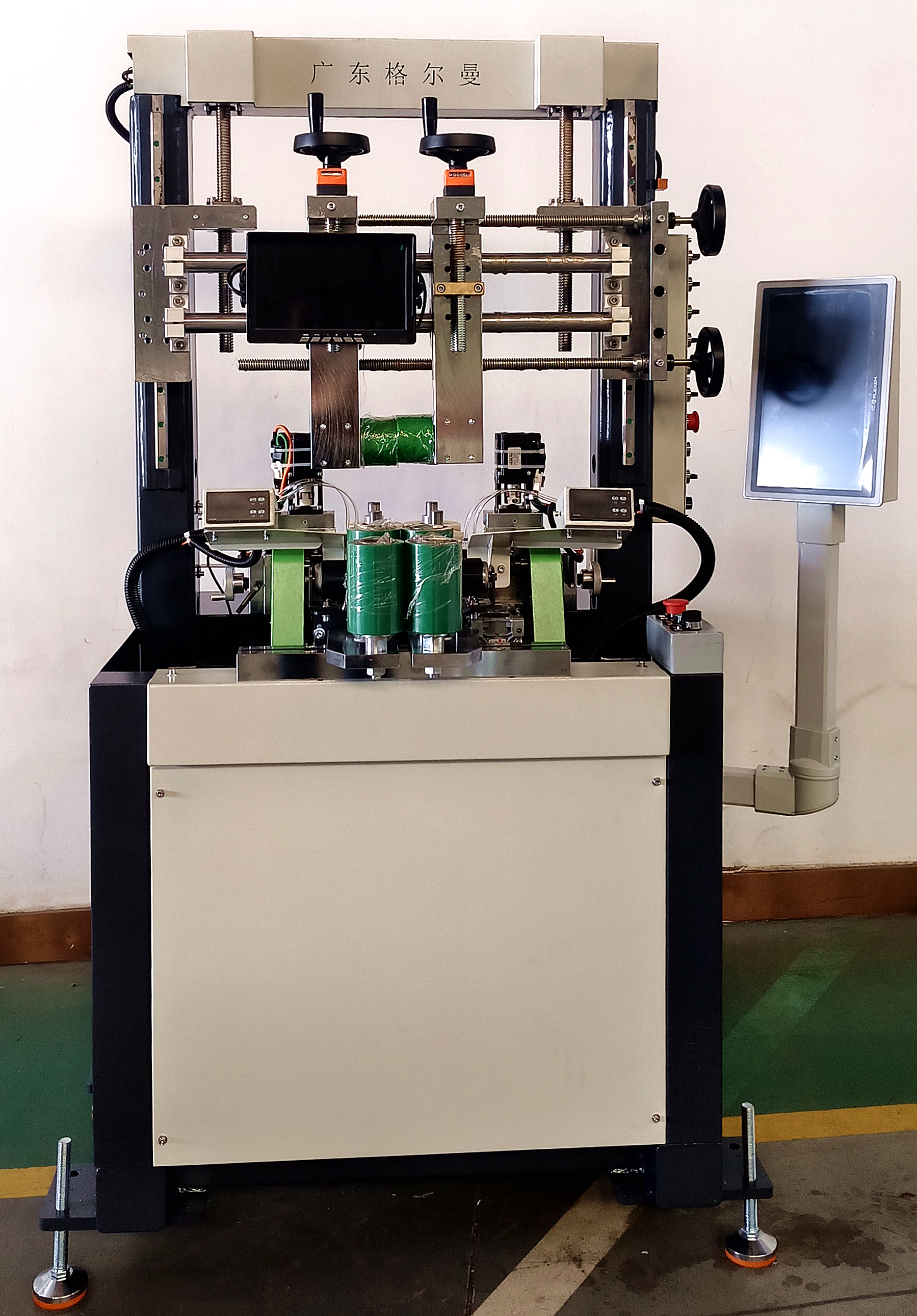

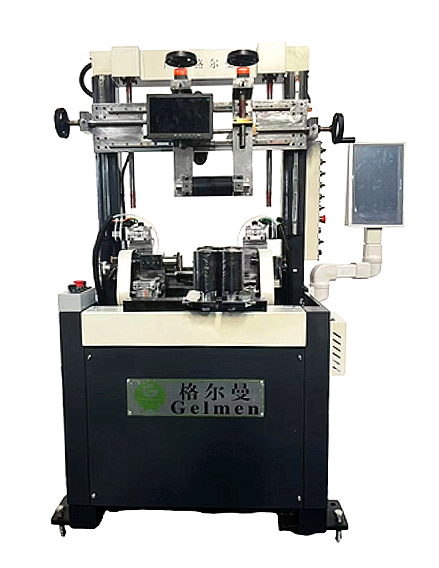

Eight-axis CNC knurling machine (bottom knurling)

Features:

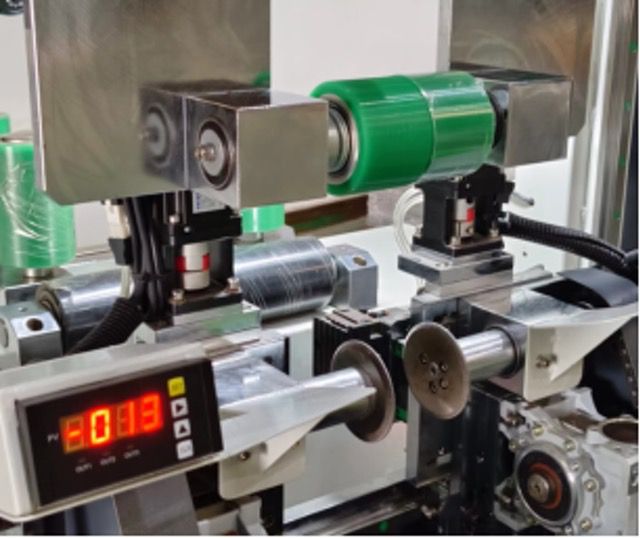

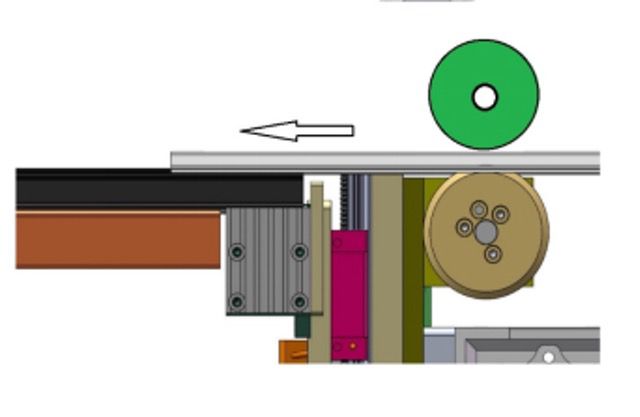

1)The knurling disc is under the profile, and the rubber roller is above, which can conveniently knurl the upper aluminum profile of the thrmal break profile .
2) When used on the thermal break assembly line, it can be quickly inserted into the aluminum profile and insulation strip located below the thermal break aluminum profile, without the need for manual flipping of profiles, resulting in high efficiency.
3) It consists of four high-precision linear modules, driven by servo motors and CNC technology, and equipped with Taiwanese brand linear guides for high-precision sliding and positioning.
4) CNC adjustment of the height of the two clamps allows for quick replacement of insulation strips of different specifications. Realize the insertion of insulation strips of while knurling teeth
5) CNC adjusts the vertical height and horizontal width of two knurling Discs, CNC adjusts the vertical height of the upper rubber roller, and CNC adjusts the vertical height of the roller bracket located at the inlet.
6) The main electrical appliances include Schneider, FATEK PLC modules, Xinjie servo motors, and AirTAC pneumatic.
7) Advanced 15.6-inch human-machine interface, equipped with specialized software developed by our company. When rolling various aluminum profiles, data storage and retrieval can be achieved; This enables quick replacement of various aluminum profiles.
