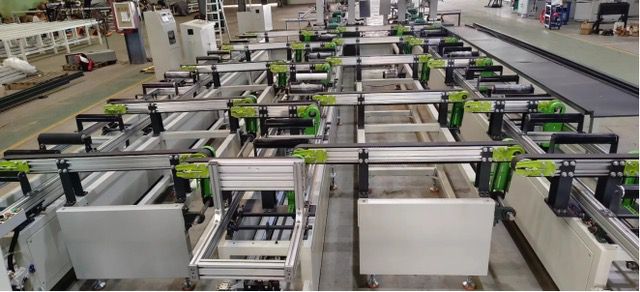

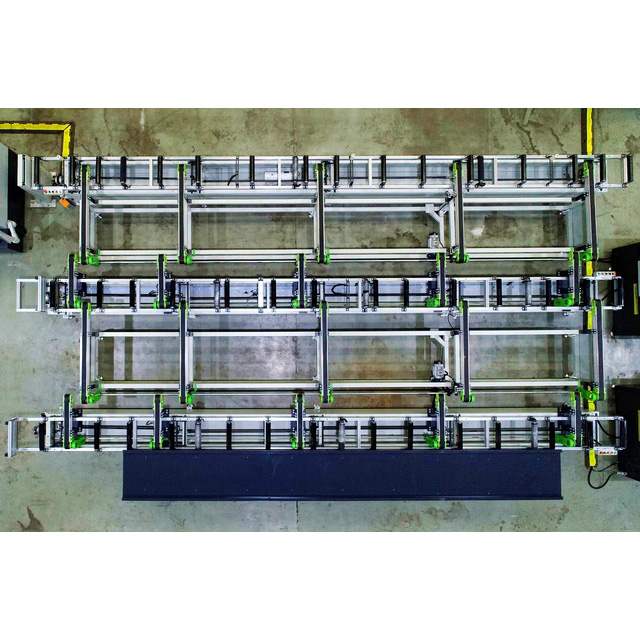

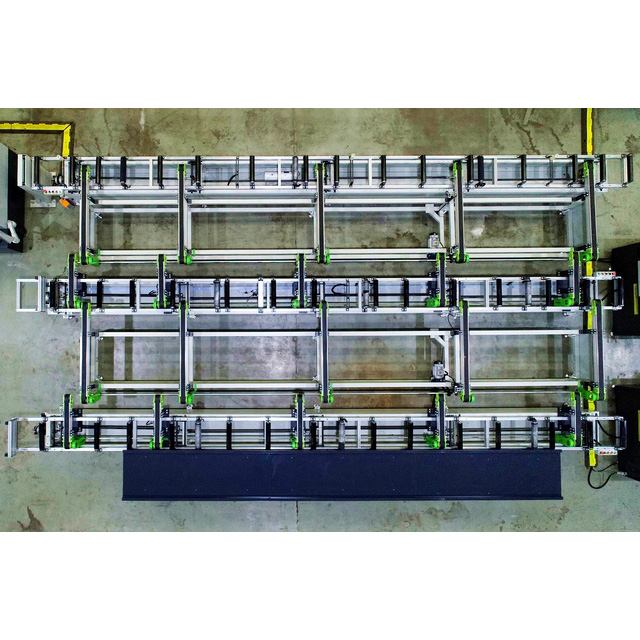

Automatic conveying system between three machines

Technical Description：
The brackets are lifted and lowered automatically， short belts are for discharge， Long timing belts are for staging and parallel move.

Action Description：
When discharging profiles， roller bracket is lowered and the short conveyor belt starts moving，which realizes profiles discharge from the roller bracket , the long timing belts convey the profiles to staging , and waiting for the manual handling to the trolley.

Usage description：
Automatic discharge and staging, reduce labor intensity and improve production efficiency.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button
Product Description

Each set of conveyor system includes:


Serial No.

Item name

Specification

QTY

Usage

1

Short timing belts

Length: 750-800mm

5

Discharge from the bracket

2

Long timing belts

Length: 1500-2000

5

Parallel movement between machines

3

Drive motors

 0.75KW

2



4

Drive reducers

 RV50

2





Product Description
