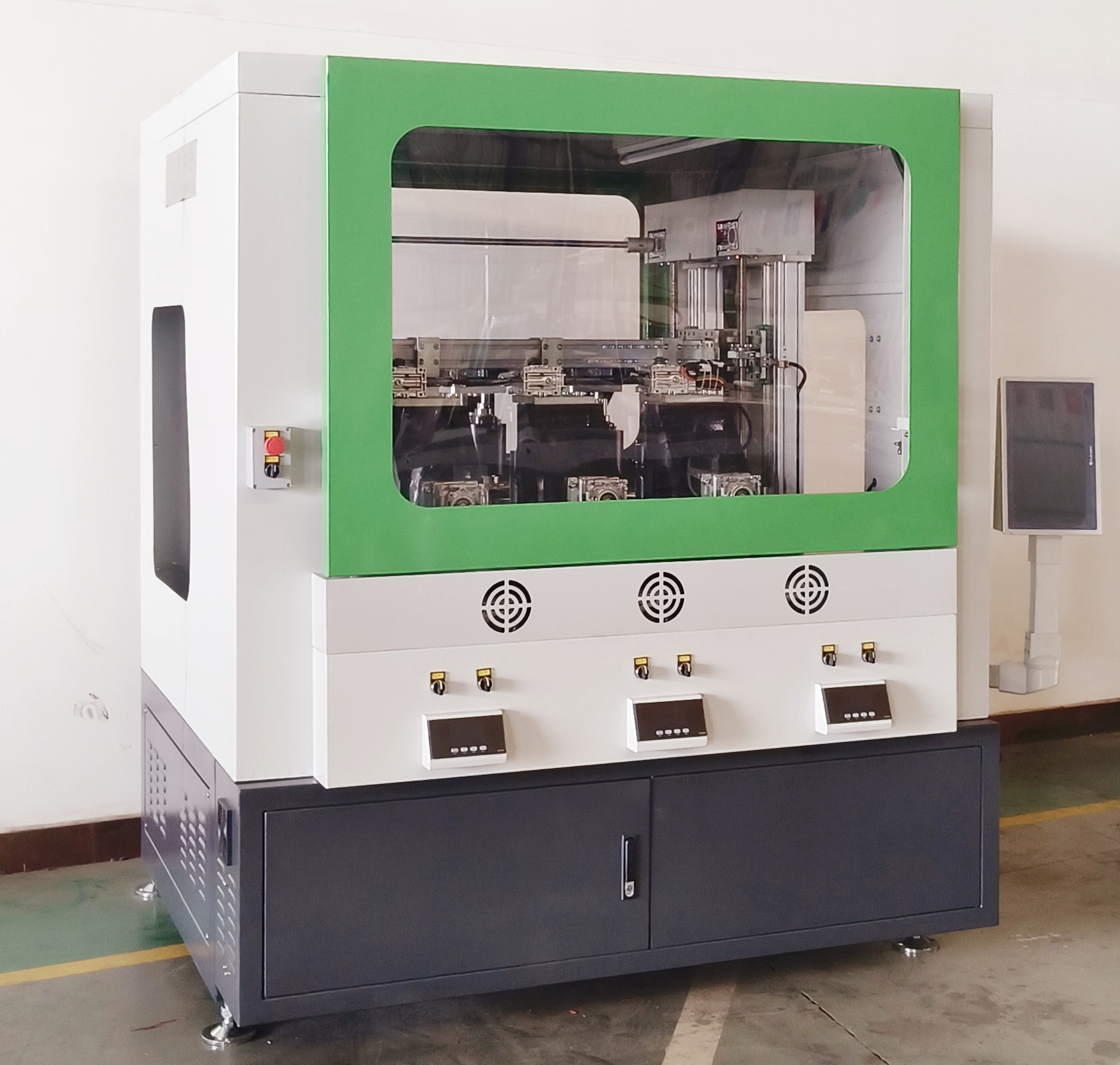

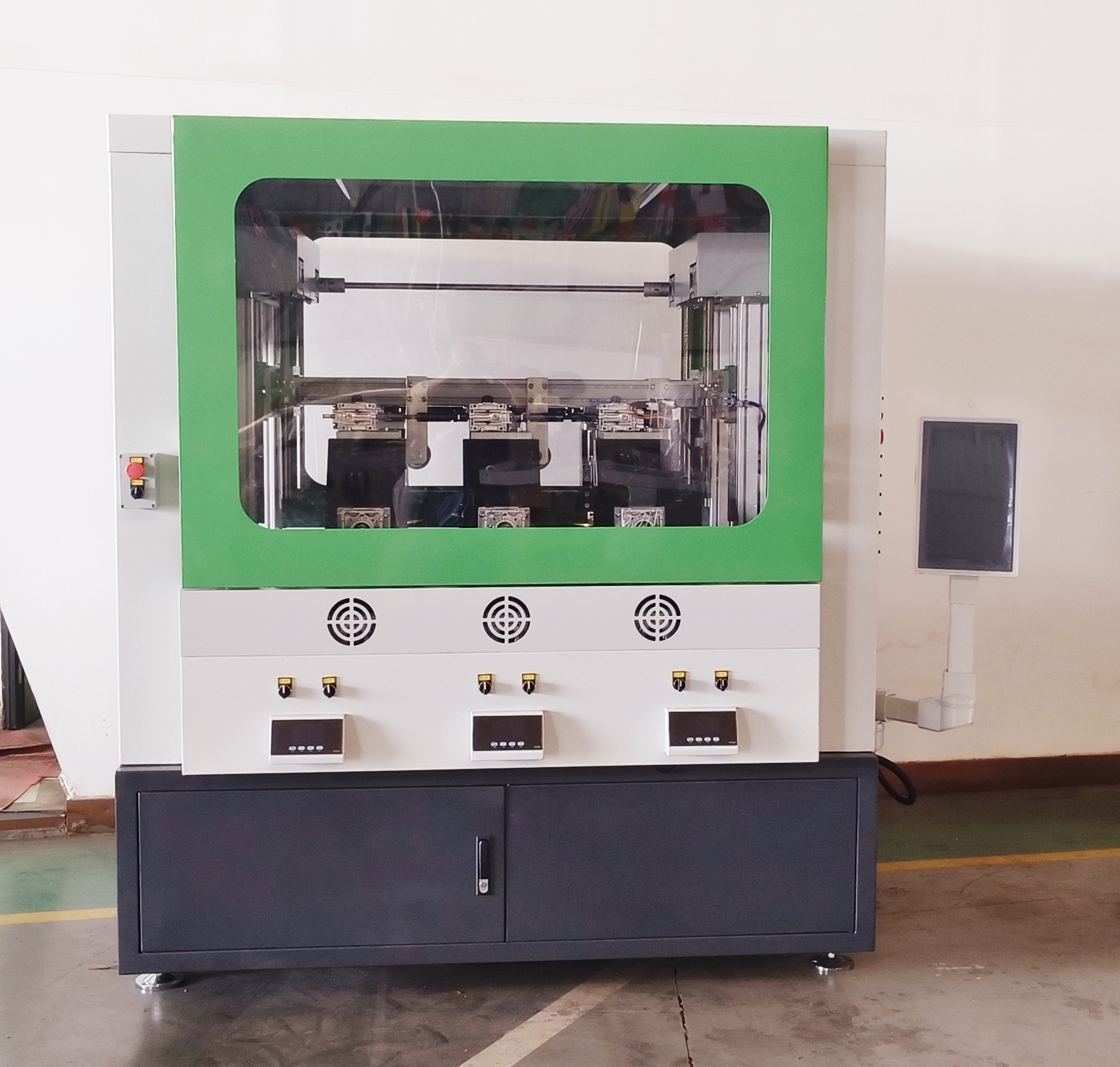

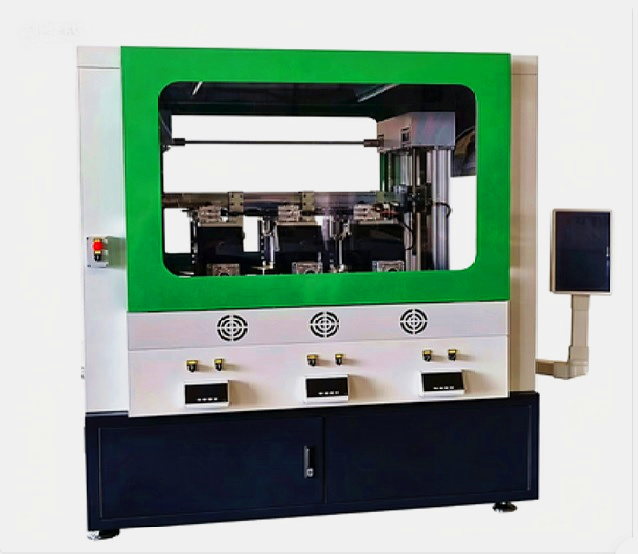

Eleven-axis CNC Rolling Machine

1) The main electrical components of the "8-axis CNC system" include Schneider, FATEK PLC modules, Xinjie servo motors, AirTAC pneumatic, etc.
2) Advanced 15.6-inch human-machine interface, equipped with specialized software developed by our company. During the rolling of various aluminum profiles, eight axis data storage and retrieval can be achieved; When replacing various aluminum profiles, it is fully automated and unmanned. The lines will automatically change to different contour types
3) Full time six disc drive. The six rolling discs all have the characteristics of main force, uniform force, fast speed, and high efficiency, and the frequency converter has a stepless speed regulation function. Each set of rolling discs is equipped with a pressure sensor, and the rolling pressure value can be displayed in real-time on the touch screen or external digital display.

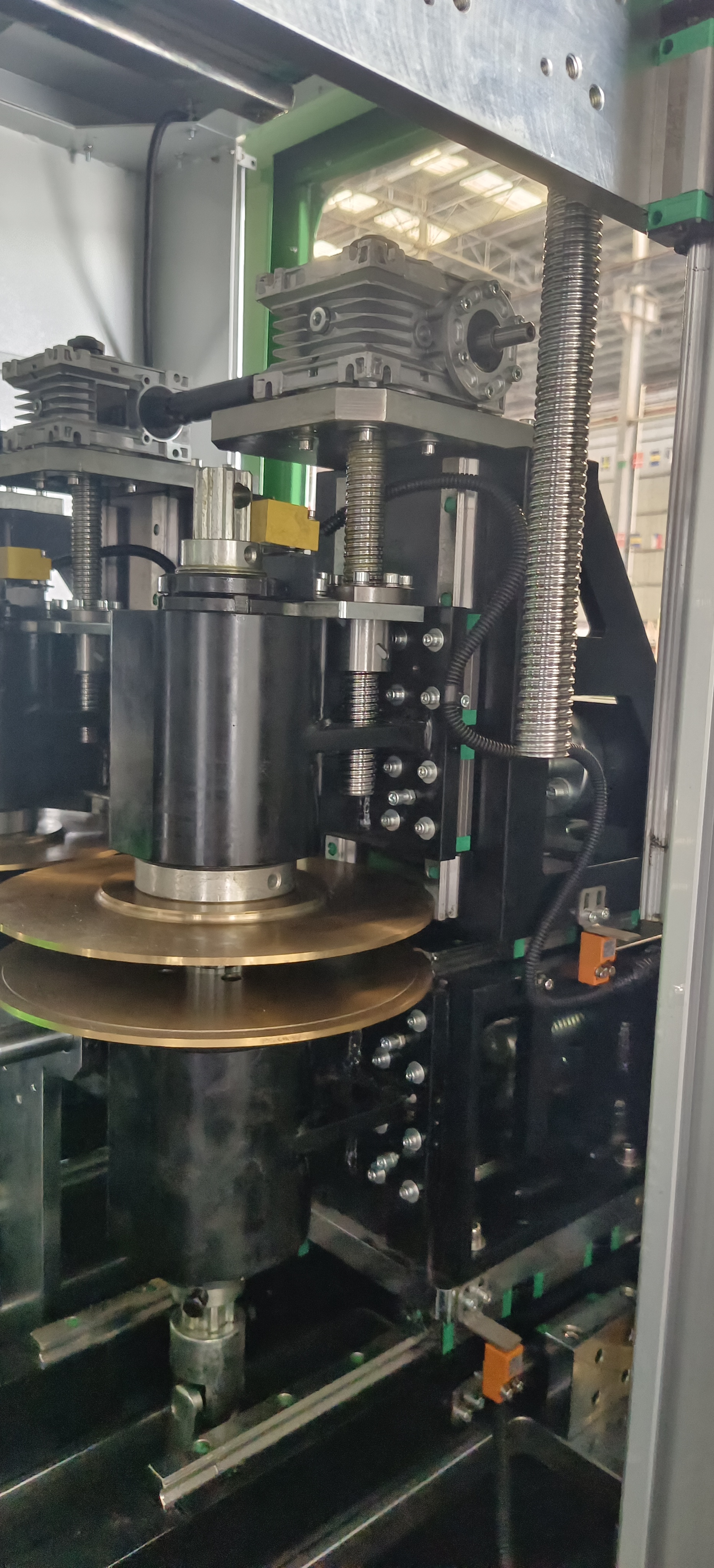

4)  CNC adjust the first three sets of horizontal moving and pressure applying rolling cutters, and CNC adjust the height of the top three sets of rubber rollers.

5） Independently adjust the height of the left 3-piece lower rolling cutter head and the right 3-piece lower rolling cutter head through CNC.

6）Independently adjust the height of the rolling cutter head on the left side 3 pieces to match the insulation strip of different specifications on the left side, and adjust the height of the rolling cutter head on the right side 3 pieces separately to match the insulation strip of different specifications on the right side.

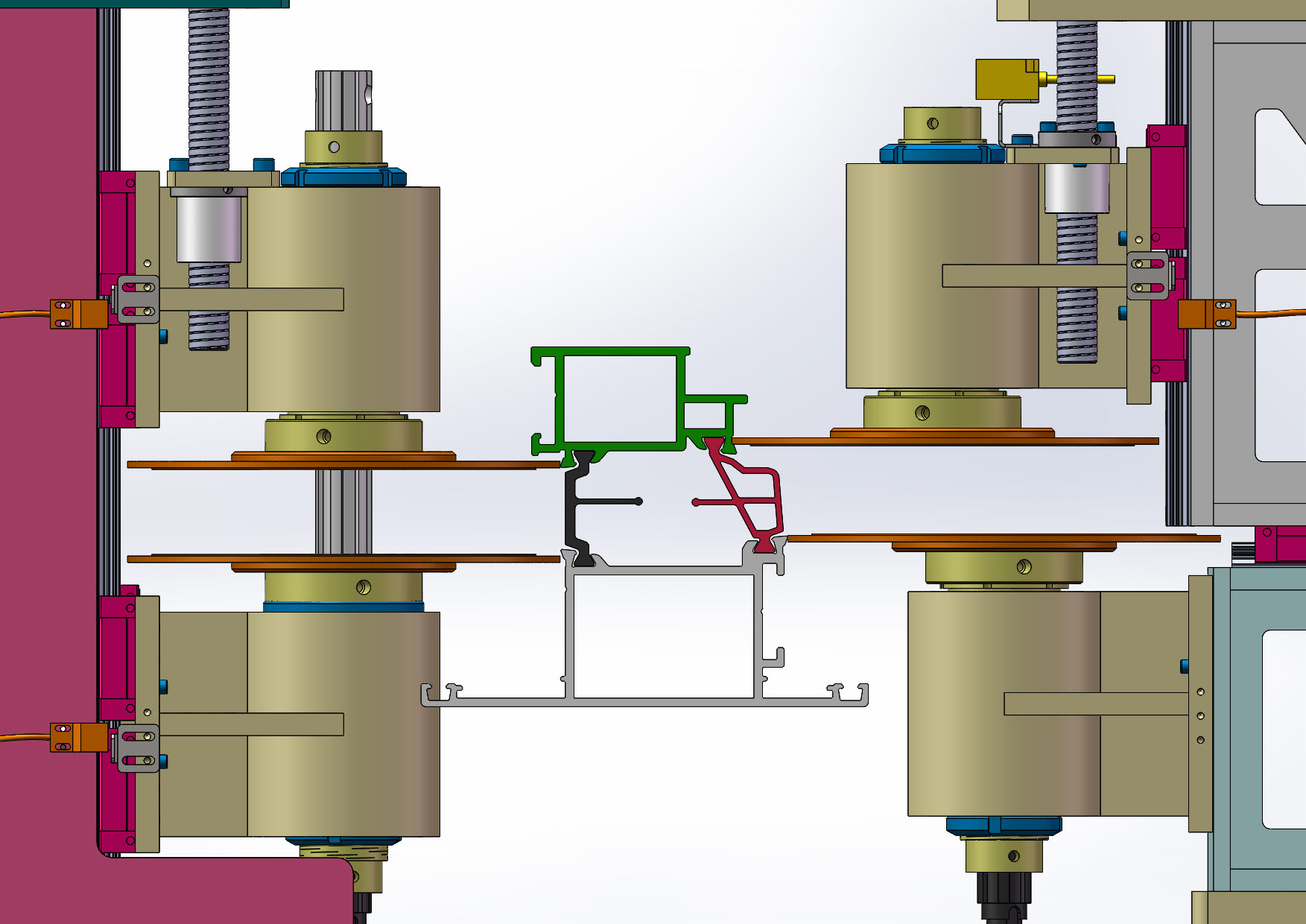

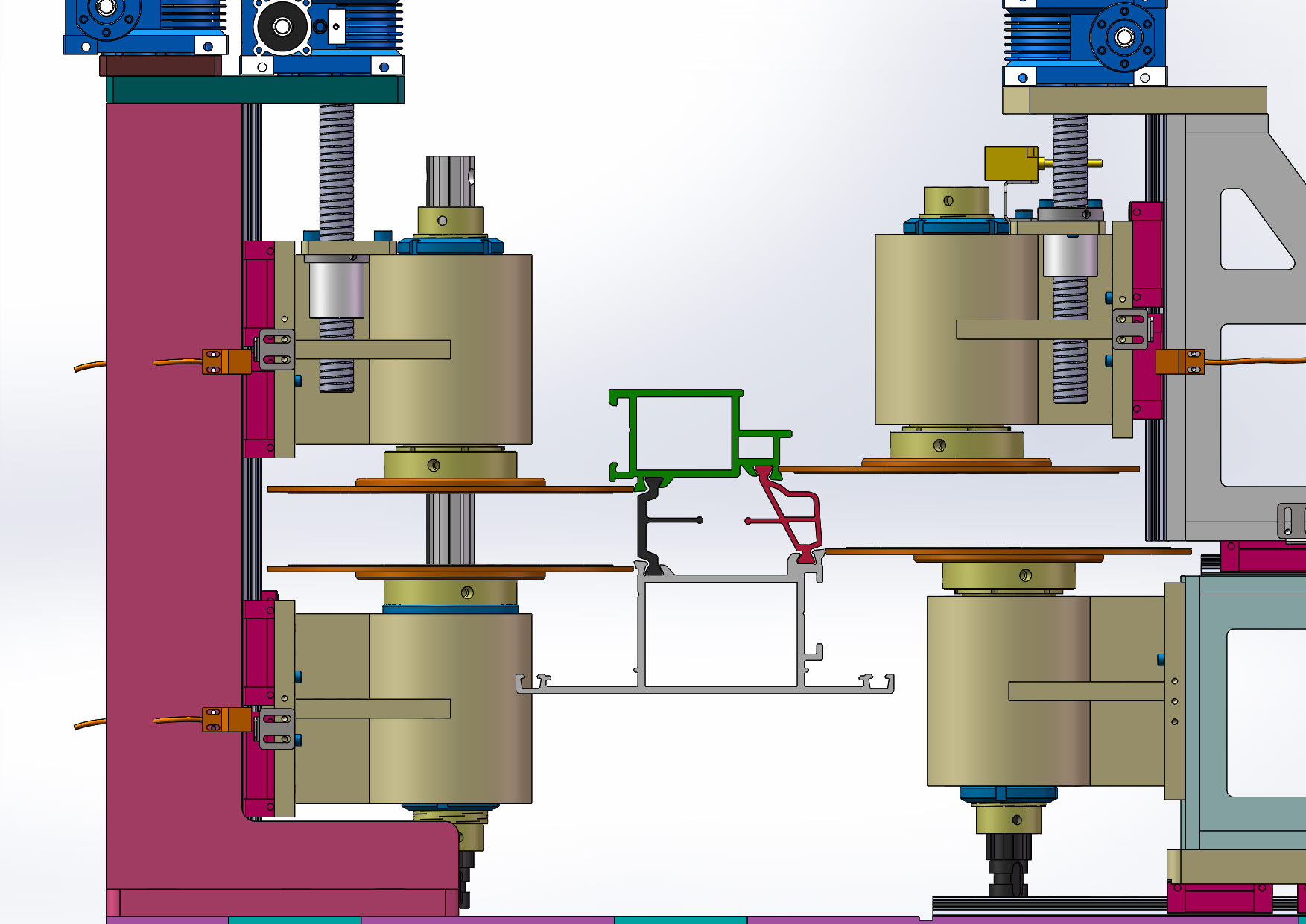

7） Independently adjust the front and rear movement of the upper cutter head of the sliding rolling group through CNC, achieving a front and rear misalignment with the lower cutter head, and can roll special profiles as shown in the following figure.
