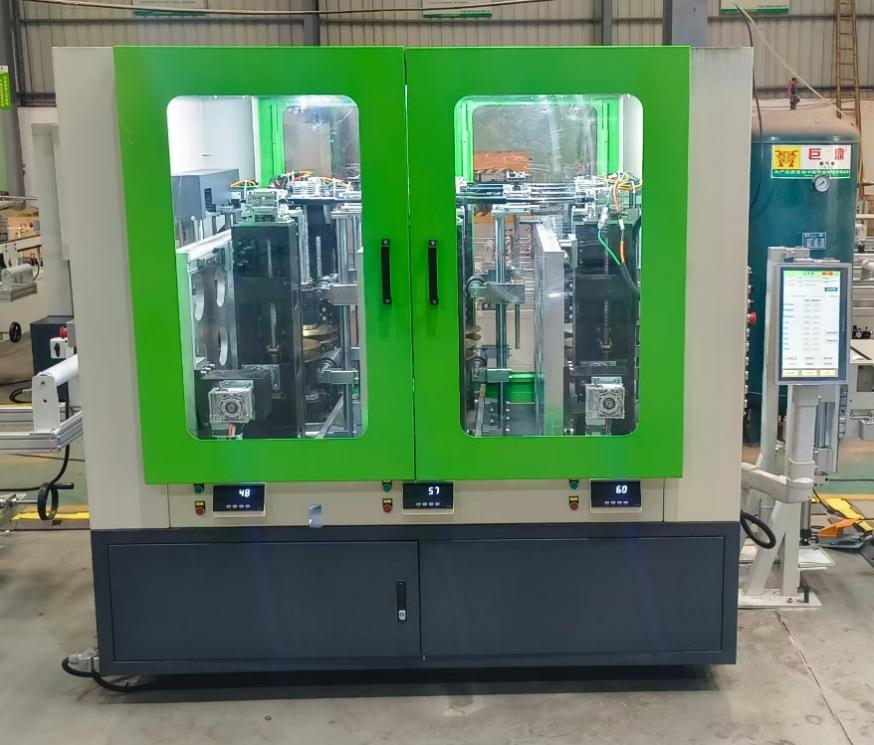

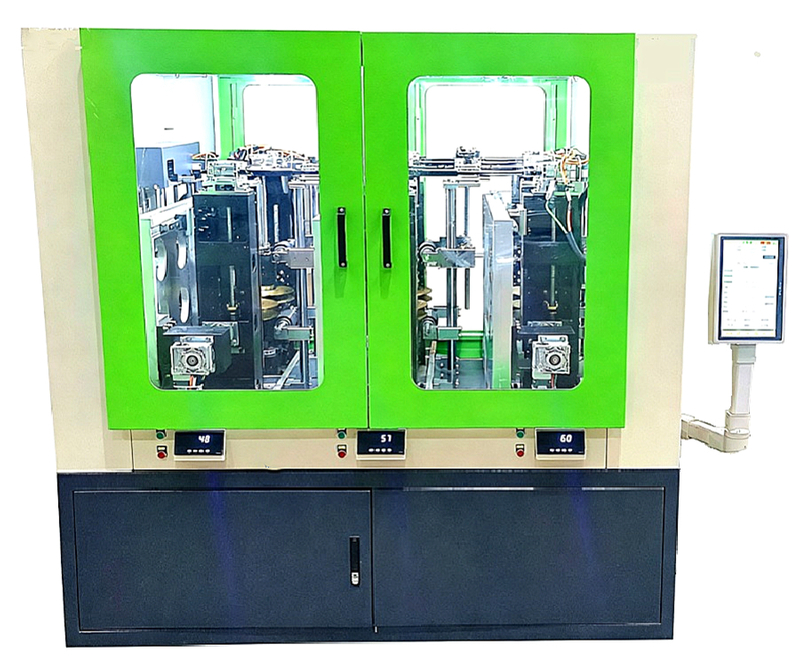

Ultra High CNC Rolling Machine UGYJ-CNC-01

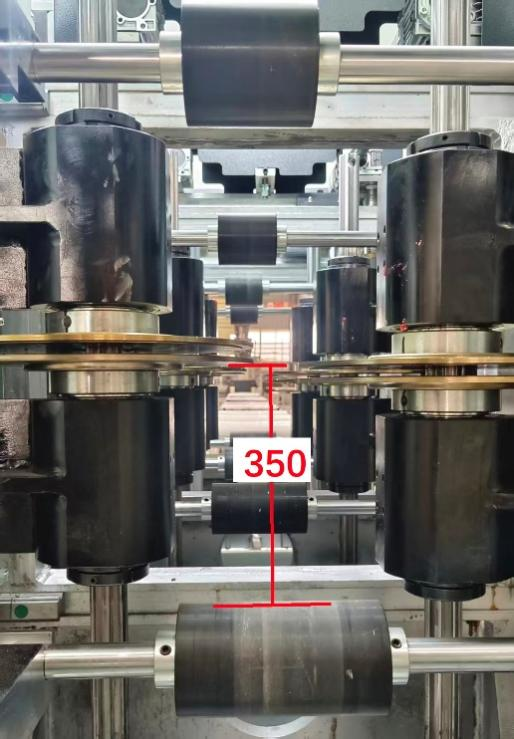

1) This is a specialized CNC rolling machine designed for rolling large and ultra-high curtain wall thermal break aluminum profiles. Its rolling disc can be CNC vertically raised and lowered to a super height of 350mm,
2)The main electrical appliances include Schneider, Siemens PLC modules, Siemens servo motors, and AirTAC pneumatic, Siemens frequency converter
3) Advanced 15.6-inch human-machine interface, equipped with specialized software developed by our company. During the rolling of various aluminum profiles, eight axis data storage and retrieval can be achieved; When replacing various aluminum profiles, it is fully automated and unmanned. The lines will automatically change to different contour types
4) Full time six disc drive. The six rolling discs all have the characteristics of main force, uniform force, fast speed, and high efficiency, and the frequency converter has a stepless speed regulation function. Each set of rolling discs is equipped with a pressure sensor, and the rolling pressure value can be displayed in real-time on the external digital display.
5) The vertical height of the rolling discs on the left and right sides can be adjusted separately by CNC, and the vertical thickness of the rolling discs on the left and right sides can be adjusted separately by CNC.
6) The width of 3 pairs of horizontally moving rolling discs can be adjusted separately by CNC, and the vertical height of 3 sets of rubber rollers can be CNC controlled

Quantity:
Availability:





Inquire Add to Basket

Ultra high CNC Rolling machine Full Automatic Thermal Break Assembly Line thermal break line

Products

Eight axis functions as follows

Technical parameters：

Serial No.	Axis Names	Axis functions	Travel range
1	Overall left Discs height	The overall height of all left rolling Discs relative to the bottom surface of the aluminum profile	2-350mm
2	Overall right Discs height	The overall height of all right rolling Discs relative to the bottom surface of the aluminum profile	2-350mm
3	Overall top rubber rollers height	The overall height of the four sets of polyurethane rollers relative to the bottom surface of the aluminum profile	20-400mm
4	Total thickness of left Discs	The thickness between the upper and lower rolling points of the insulation strip on the left side of the aluminum profile	10.6-80mm
5	Total thickness of right Discs	The thickness between the upper and lower rolling points of the insulation strip on the right side of the aluminum profile	10.6-80mm
6	First group rolling position	The horizontal position and pressure value of the first group of pre-pressure rolling Discs	2-200m
7	Second group rolling position	The horizontal position and pressure value of the second group of compression rolling Discs	2-200m
8	Third group rolling position	The horizontal position and pressure value of the third correction rolling Discs	2-200m

Item Name	UGYJ-CNC-01
Electricity	380V/50Hz
Total power	8.5Kw
Diameter of rolling Disc	270mm。
Minimum insulation strip size	12mm
Maximum insulation strip size	80mm
Max process profiles	200x400mm (WxH)
Rolling speed	0-90m/min
Machine size	2250x1850x2150mm
Machine weight	3100kg
