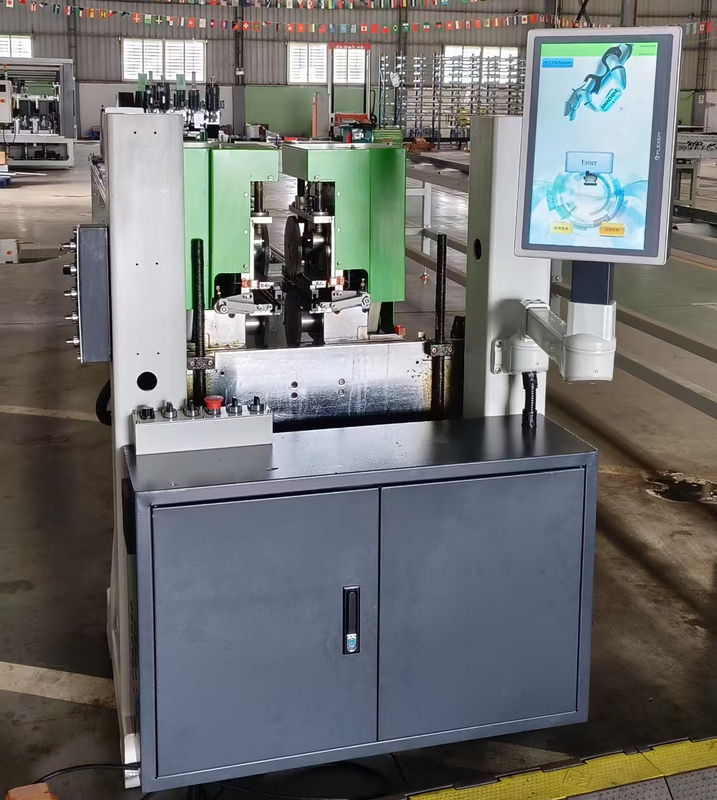

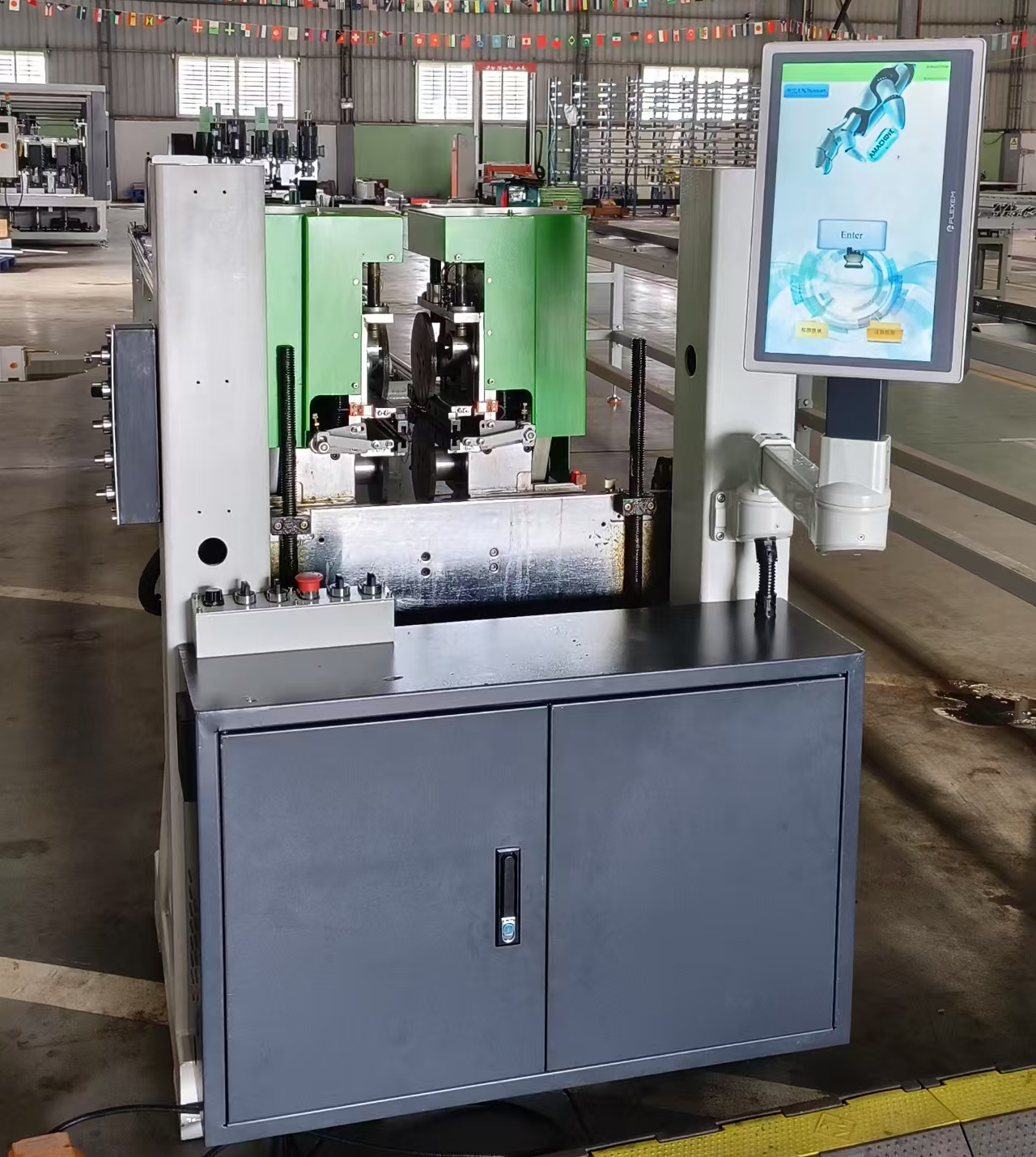

Five-axis Strip Feeding Machine
You are here: Home » CNC Thermal Break Line for Aluminum » Five-axis Strip Feeding Machine

loading

Five-axis Strip Feeding Machine

Machine Features：
Accurately insert the thermal barrier strip into the groove of the knurled aluminum profile.
1）Unique feeding unit for thermal barrier strip insertion., Taiwan brand linear guide rail with ball screw to achieve high-precision sliding and positioning.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

  • GCT-CNC-01

  • Gelmen

Technical parameters：



Item Name

GKC-CNC-01

Electricity

380V/50Hz

Total power

3.5Kw

Diameter of Knurling disc of Knurling Disc

160mm

CNC adjust range of Knurling Disc

Horizontal（width）：200 mm

Vertical（height）：200 mm

CNC adjust range of strip clamps

10---71mm(insulation strip)

Knurling speed

0-100m/min

Max processed profiles

210x210mm(WxH)

Knurling Disc adjust width

0-210mm

Machine size

1200x850x1860mm(LxWxH)

Machine weight

800Kg
Technical parameters：

Related Products

YKK (Japan) Production Base in Suzhou Full Automatic Thermal Break Assembly Line
YKK (Japan) Production Base in Suzhou Full Automatic Thermal Break Assembly Line
thermal break machines
thermal break machines
Full Automatic Thermal Break Assembly Line
Full Automatic Thermal Break Assembly Line
CNC thermal break machine
CNC thermal break machine
Thermal break machine
Thermal break machine
Automatic conveyor system
Automatic conveyor system
Automatic thermal break line
Automatic thermal break line
Automatic paper wrapping machine for profiles
Automatic paper wrapping machine for profiles
Profile automatic
Profile automatic
Single tie profile bagging
Single tie profile bagging

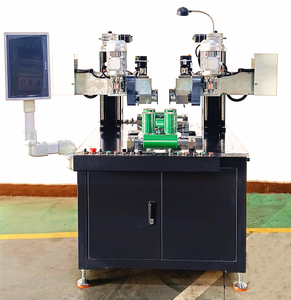

Five-axis CNC knurling machine with strip inserting function (Top knurling)
