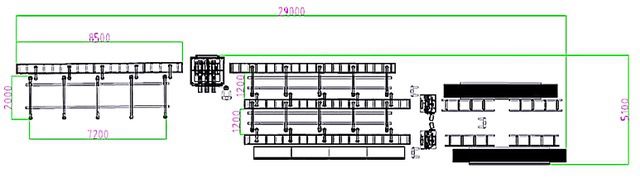

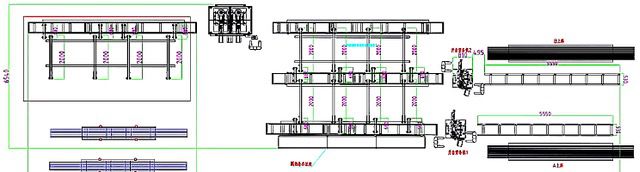

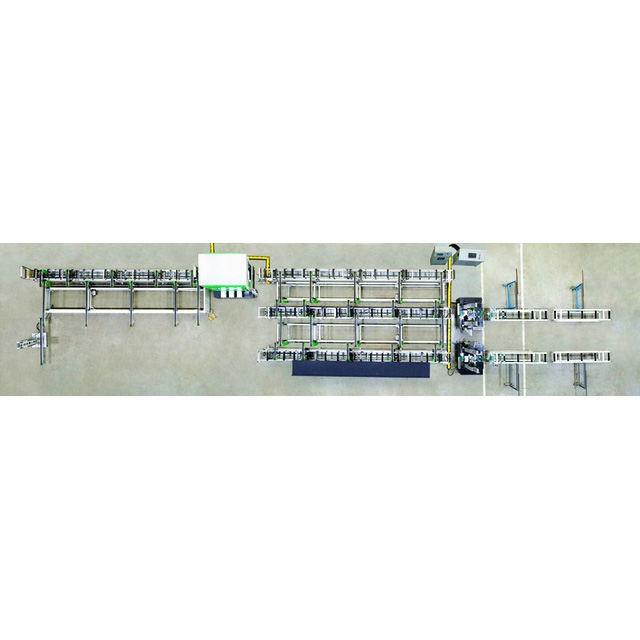

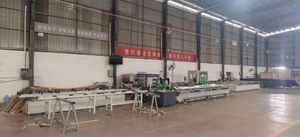

Fully automatic thermal break assembly line

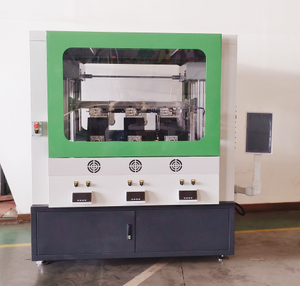

Five-axis CNC knurling machine with strip inserting function (Top knurling)

It consists of three high-precision linear modules, Taiwan brand linear guide rail with ball screw to achieve high-precision sliding and positioning.

1 or 2 sets

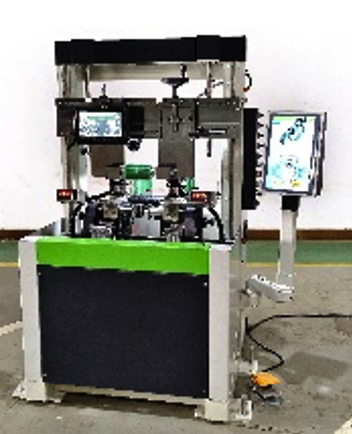

Eight-axis CNC knurling machine (bottom knurling)

Product Description: Advanced 15.6 inch interface, equipped with special software developed by ourselves. It can realize data storage and recall when changing different aluminum profiles.

1set

Eight-axis CNC rolling machine

Product Description: Full-time six-Disc drive. Six rolling Discs all have the main force, uniform force, fast speed, high efficiency, and the frequency converter has stepless speed regulation. Each group of rolling disc is equipped with a pressure sensor, and the rolling pressure value can be displayed in real time on a touchscreen or an external digital display .

1 set

Automatic conveyor system

Product Description: The brackets are lifted and lowered automatically， short belts are for discharge， Long timing belts are for staging and parallel move.

3 sets

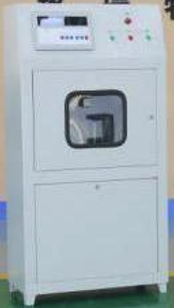

Shear force test machine

Product Description: The machine is used to test the shear force of combined profiles. The main machine is equipped with load sensor to realize electronic measurement, digital display and computer data processing.

1 set
