Views: 0 Author: Site Editor Publish Time: 2026-09-01 Origin: Site
In modern architectural design, energy conservation and indoor comfort have become indispensable core standards. While aluminum alloy profiles are widely favored for building doors, windows and curtain walls due to their high strength, light weight and excellent durability, their inherent high thermal conductivity leads to serious heat transfer problems. Thermal break strips, as key insulating components embedded in metal profiles, perfectly solve this pain point and have become an essential part of high-performance energy-saving building systems.

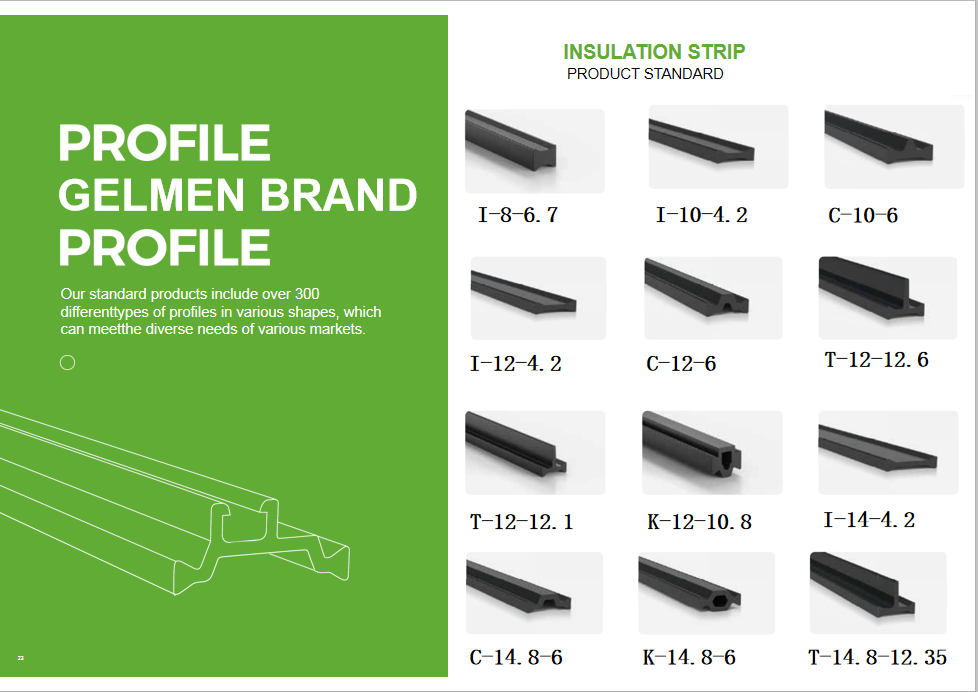

A thermal break strip is a high-performance non-metallic isolation component specially designed to block thermal bridging. It is installed between the internal and external metal sections of building profiles, cutting off the direct heat conduction path of metal materials. Unlike surface coatings or simple gaskets, thermal break strips form a stable structural isolation layer, permanently separating the indoor and outdoor thermal environments without compromising the overall structural stability of building profiles.
The working principle of thermal break strips is based on thermal conduction isolation. Heat naturally transfers from high-temperature areas to low-temperature areas. In traditional all-metal window and wall systems, outdoor high temperature in summer and low temperature in winter can quickly penetrate metal profiles into the room, causing indoor temperature fluctuations and increasing the load of air conditioning and heating equipment. With low thermal conductivity, thermal break strips effectively slow down and block heat exchange, forming an efficient thermal barrier. This mechanism not only reduces heat loss but also inhibits the generation of condensation on indoor metal surfaces in low-temperature environments, avoiding mold growth and profile corrosion caused by moisture accumulation.
Material performance determines the core quality of thermal break strips. At present, the most mainstream and high-quality raw material is PA66 GF25, a glass fiber reinforced polyamide material composed of polyamide 66 and 25% glass fiber. This composite material has outstanding comprehensive performance: ultra-low thermal conductivity ensures excellent insulation effect, high mechanical strength and dimensional stability enable it to bear the structural tension and pressure of aluminum profiles for a long time, and excellent UV resistance and high-temperature resistance allow it to adapt to complex outdoor weather conditions. Qualified PA66 thermal break strips have a service life of more than 40 years, which is fully compatible with the service life of building doors and windows, avoiding frequent replacement and maintenance costs.
Thermal break strips have a wide range of application scenarios, mainly covering aluminum alloy energy-saving doors and windows, building curtain walls, solar photovoltaic brackets and other building metal profile systems. In high-rise buildings, commercial office buildings and high-end residential projects, the application of thermal break strips has become a standard configuration. In addition to heat insulation and energy saving, high-quality thermal break strips also have auxiliary noise reduction functions, which can weaken the transmission of outdoor noise through metal profiles and further improve indoor living and office comfort.
The value of thermal break strips is reflected in both economic and environmental benefits. For users, it significantly reduces building energy consumption, cuts down the operating cost of heating and cooling equipment, and creates a constant-temperature and comfortable indoor environment. For the construction industry and ecological environment, the popularization of thermal break strip technology effectively reduces building carbon emissions, conforms to the global green building and low-carbon development trend, and provides strong technical support for building energy conservation and emission reduction goals.
In conclusion, though thermal break strips are small invisible components in building structures, they undertake the important task of building thermal insulation and energy saving. With the continuous improvement of global building energy efficiency standards, high-performance thermal break strips will continue to play an irreplaceable role in modern green architecture, becoming a key cornerstone for balancing building structural safety, aesthetic performance and low-carbon energy-saving development.
